Features:

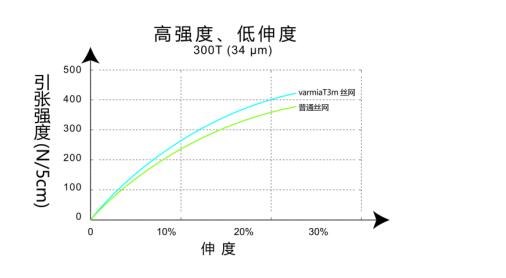

High strength, low elongation, accurate printing precision control, stable time-dependent changes, and good adhesion to emulsions.

Note:

1. ●General inventory products

2. ○Unconventional inventory products

3. The above recommended maximum tension value is the reference value calculated by using the 1000M*1200MM net machine and the TEC tensiometer STG-80NA (pointer type) to determine the tension value, which is not a guaranteed value. The tension value varies depending on the size and structure of the net machine.

Number of orders:

Refers to the number of mesh or mesh in the unit length of the screen.

Example: 120 mesh / CM 1C, 120 mesh or mesh in length, 300 mesh / inch: 300 mesh or mesh in 1 inch length.

Wire diameter:

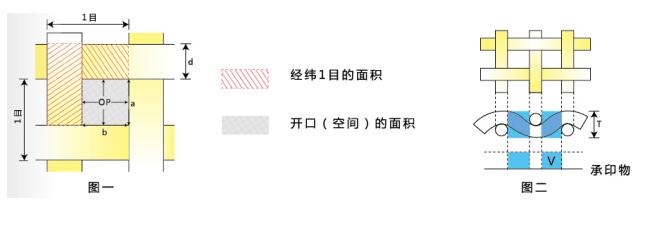

Refers to the diameter of the wire warp/weft, as shown in Figure 1 below, and d represents the wire diameter.

Opening:

Refers to the single mesh area enclosed by the wire warp and weft, as shown in Figure 1, OP shows the opening.

Opening ratio:

Refers to the percentage of mesh area in the screen area per unit area, as shown in Figure 1 below:

Calculation formula:

Aperture ratio

Yarn thickness:

Refers to the distance between the surface of the screen and the bottom surface of the screen under tension, as shown in Figure 2, where T is the thickness of the yarn.

The amount of ink:

Refers to the volume of ink passing through the screen in a unit area during printing, as shown in Figure 2, where V represents the ink tray.
