Preface

The mechanical tensioner has a large area of tensioning net, so the correct way of tensioning net will reduce the rate of breaking net, improve the accuracy, and have a longer service life for the machine itself.

The net frame of the net is fixed in the available range of the net machine according to the straight slanting net. (usually measured by the width of the net cloth) The clamping fixture is about 3 centimeters on each side, and it is preferable to subtract 10 centimeters from the net width.

Netting

Semi-automatic machine:

1. A clamp is clamped at the front end of the left and right latitudinal side first, then slightly flattened, and the average force is pushed to the inside of the longitudinal clamp. (The straight clamp must be average on both sides.)

Clip net cloth, back off on both sides of the zonal fixture, according to the arrow button, the screen cloth out of certain net distance (high speed).

2. Open all clamps that need to be clamped on both sides of the weft, and then push a longitudinal clamp into the left and right sides to clamp the remaining mesh cloth on the edge.

The mesh cloth is brought into the weft wares.

3. return will head to the left of the transverse clamp all push in the end, the front cloth straightened, the clamp cloth to do the same action on the right,

The open to the head fixture, the net average offset, Brad into the net holder. The first team to clamp with his chin on the top, after a sequence of clip,

(Note: the network folder must be mesh smoothing) from cross zonal two fixtures, began to warp net (slow motion) reaches a certain tension,

The way to close to the tensiometer test fixture of warp tension.

4., according to the warp net button, the transverse table can clamp the network distance to indent so far (high speed. High speed shrink table,

Attention will touch screen frame table or table must be greater than the net frame in the zonal shrinkage). The fixture must be behind the first folder,

In the final second measured the distance (usually about 15-20 cm) in a folder and then the last one, the last one in the network folder before, must press the cloth by hand,

Let the cloth have excess gap, to prevent excessive tension and nets, unilateral folder the other side also required the first rear clip, two clip method and the same as before,

After each of the clamping fixture must use the mesh tension reclamp, net and so on, complete with the network, according to the button vs. pull (slow), weft clamping net procedures to be effective,

Don't be careless, net cloth tension is different, so it is recommended to do two times the weft tension, more stable.

Matters needing attention:

(1) net machine button, respectively, to retreat, fast and slow, four functions about zonal speed of four functions, two functions before and after lifting the top frame and transform high speed,

About high speed switch, were divided into four groups, each group has an electronic control valve, not with the group of two and press the button, press the action button is not,

High speed switching, causing damage to the automatic control valve short circuit, electronic parts.

(2) Zhang Wangshi, remember a time warp must be completed, such as the weft tension is not enough, must be to relax and then pull the warp.

(3) for the purpose of retraction is sufficient to release the pressure to reach the average net, the average tension to suggest the retracting time is 3-5 minutes, with 22 newton,

25-26 Newton for 10-15 minutes, it is recommended to do two times net yarn, can reduce the net rate and increase the average degree of tension.

Automatic net machine operation mode:

1.: straight to the warp shaft net returns the nose, gauze must pass through the middle connecting rod net shrinkage, pull up, (the average distance to the first fixture),

The average net cloth clip, by pulling back up high in the end, the head cloth must look at both sides of the mesh is uniform, compact volume, a telescopic switch,

The mesh is composed of a telescopic connecting rod with open clamp splint in switch, automatic fixture will clamp, a pull all warp, steps and semi automatically.

Pull the warp to the required tension, on both sides of the automatic fixture switch, shrink table to a certain distance, a full clip clip,

For weft net action.

2. of all mechanical net machine, must operate by hand, do not mess and press the switch, but a collision, please check the damaged situation,

If there is a strange sound or movement is not smooth, do not continue to use, should as soon as possible to find a professional repair, not reluctantly use caused by serious malfunction, difficult maintenance.

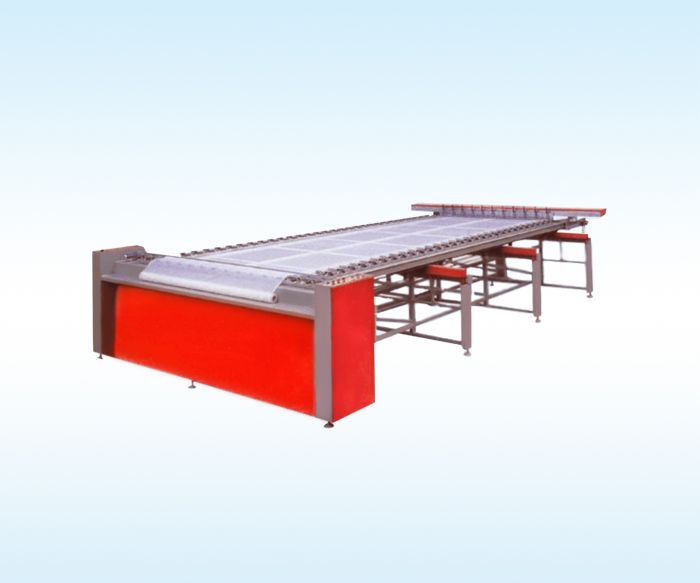

Net machine characteristics:

1. the machine table size can change, lifting height can be adjusted.

2. separate yarn net, with a speed of two speed can be selected. The single screen can be repeatedly stretched.

3. for tetolon cloth and all kinds of fabric. The average tension, tension and stability, can effectively prevent the nets. Tension error within plus or minus 1 Newton.

4. fixture using double type chuck clamping cloth more effectively, prevent off network, and strengthen the improvement of previous single fixture of the shortcomings, the life growth, maintenance more convenient.

5. fast and slow release with new specifications from the cylinder, improve the previous use of electromagnetic noise generated from the plant, noise significantly improved.

Machine specifications:

Machine size: 620x257x100CM weight: about 1500KG

The installation site needs: the length of the machine with the width of 100CM =705x350CM (personnel walking space)

User network folder height: 90-95CM four manual fixture

The maximum net area: 160 x 450CM (net after expansion distance as net cloth and general, extending the distance about 10-20CM after pulling the warp,

Within most of weft extending about 10CM.

The maximum tension (NT): 50NT

Power phase: 3 phase voltage: 380V capacity: 2KW rated current: 10A horsepower: 3HP

No fuse switch machine specifications: 3P30A with compressed air system pressure: about 5KG

Accessories: 25CM 36, 20CM head fixture fixture 9, 20CM 9, 15CM vertical fixture fixture 5
