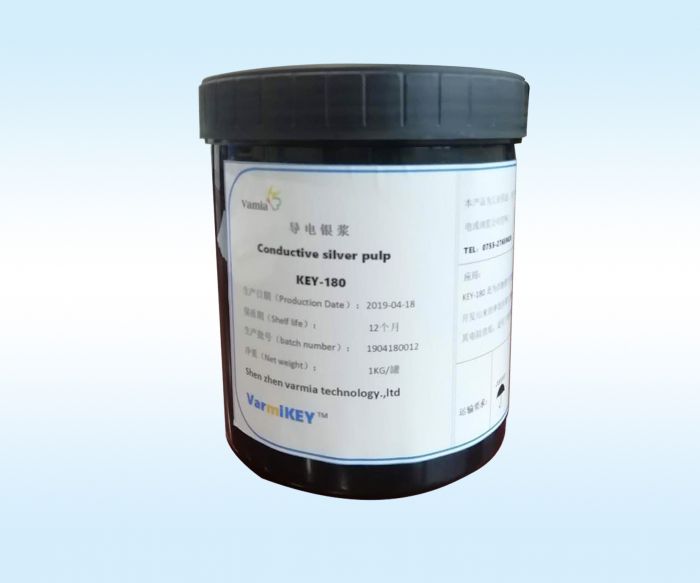

KEY-180 conductive silver pulp

preface

The KEY-180 is a single set of polymerized carbon pulp developed for printing on a flexible printing line of a touch switch.

Its low resistance value is suitable for improving printing properties, and it is practical and convenient.

feature

Resistance is low. 10 Ω / cm <UNK>, 14 μ thick.

The adhesion to PET films(untreated) is excellent.

Very flexible.

As a result of the single component, long-term storage stability is excellent.

Physical Properties and Conditions of Use

Specific weight 1.15(20 °C)

Adhesion 30,000 ± 6500 mPa • s(25 °C) Viscosity measure BROOKFIELD HADV-I

Brush material type ... PET film(untreated)

Recommended printing film type 14 μ(web version: stainless steel plate for 150 nets)

Printing area ... about 160cm <UNK> / g(14 μm)

Dilute solvent ... KEY-P10 solution

Edition cleaning ... CLEANER 3 # cleaning agent

Dry conditions ... 120 °C about 15 minutes

Sex energy(14 μm thick)

Surface resistance 10.0 Ω / cm <UNK>(measured by 4 probe method)

Volume resistance ... 1.0 × 10-2Ω cm(measured by 4 probe method)

Pencil hardness ... H

Attachment 100 / 100(Cross wrong tape stripping experiment)

Environmental resistance

Thermal shock experiment ... Resistance value changes within 10 %(-20 ~ 80 °C, 2 hours each, 10 cycles)

Thermal resistance Idem(150 °C, 72 hours)

Moisture resistance(40 °C, 90 % RH, 240 hours)

Curved resistance change rate(360 ° bend) ... The resistance change is within 20 %

matters needing attention

The above values are measured values, not guaranteed values.

For use, please refer to the product's chemical safety technical use book MSDS.

Before use, please do test printing to confirm ink performance.
